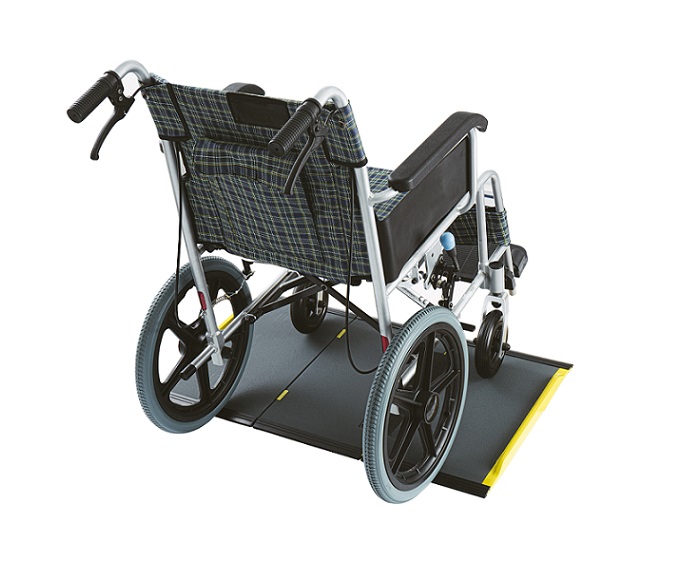

GO01 three-fold portable ramp is light, versatile and wide. Super compact to use for small step or kerb. A cool carry bag comes with purchase and allows you to bring your ramp everywhere.
| Feature | Detail |
|---|---|
| Product Name | DUNLOP GO01 Series Portable Folding Ramp | S-50G3-E |
| Length | 47cm |
| Fold | Three-fold |
| Width | when in use : 82 cm |
| effective width : 80 cm | |
| when folded : 29 cm | |
| Thickness when folded | 5.5 cm |
| Weight | Approx. 2.5 kg |
| Side wall | height : 1.6 cm |
| Maximum load | 300 kg |
| Material | Glass Fiber Reinforced Plastic (GFRP) |
| Rise(1:12) | 3 cm or below |

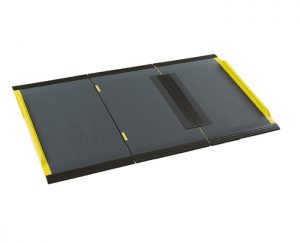

DUNLOP's first three-fold type portable folding ramps are light and compact in size, strong enough to withstand a maximum of 300kg of load capacity. A well-designed carrying bag that keeps the ramp accessible and allows you to carry the ramp along wherever you travel. This travel-friendly series helps eliminate any potential barriers you might face. It is convenient to use and store. Besides a modest length, long type (up to 205cm), folding ramps in two-fold structures are also available to facilitate different needs.
Convenient

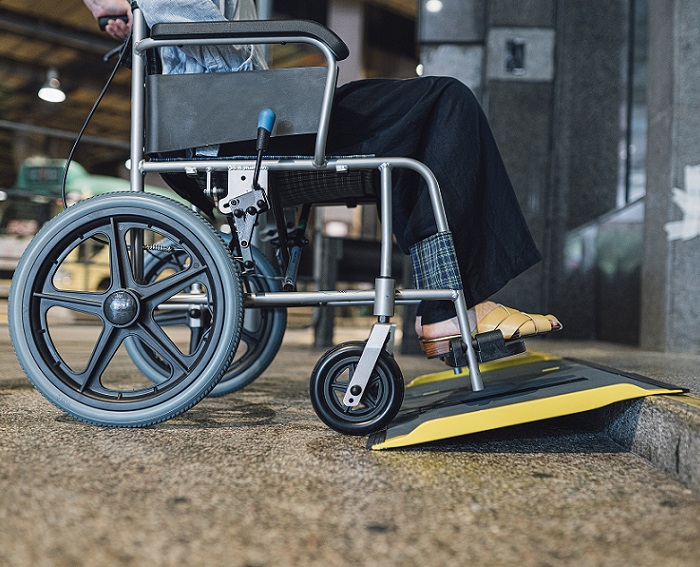

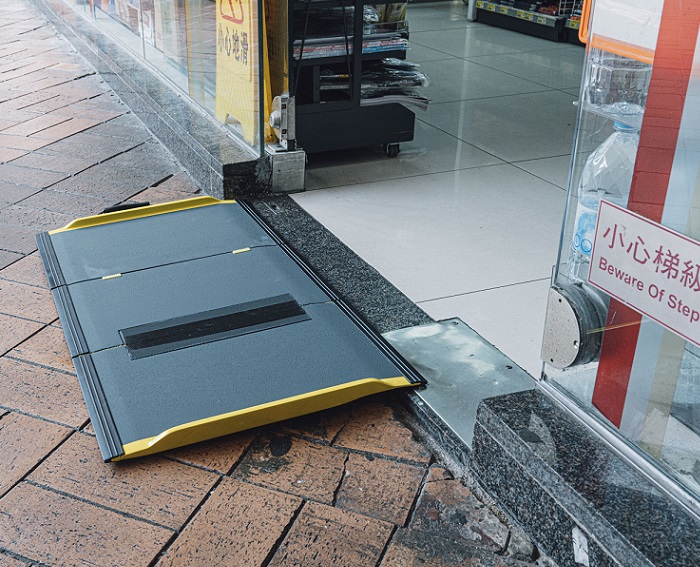

DUNLOP GO01 is versatile for use in a variety of places such as shops, public facilities or homes. It is easy to use! Simply place it over the necessary barrier and then unfold. Use it after making sure it is placed properly. Reverse the action to remove it after use.
Durable
Compliant with the portable wheelchair ramp durability standard of the Japan Industrial Standard, JIS T9207 proves our products can be used up to 11,000 times. 5-year durability period under the assumption of 3 round trips of use per day.
Wide
Widest effective width of 82cm in three-fold type and 78.5cm in two-fold type compared to the other three series, providing you with enough space for your electric wheelchair or scooter. DUNLOP GO01 is suitable for use in a wide variety of scenarios such as shops, travel spots and other venues.
