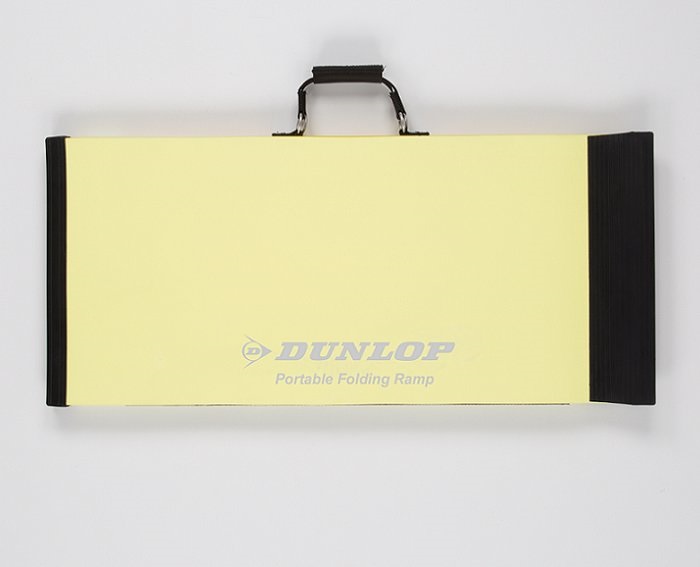

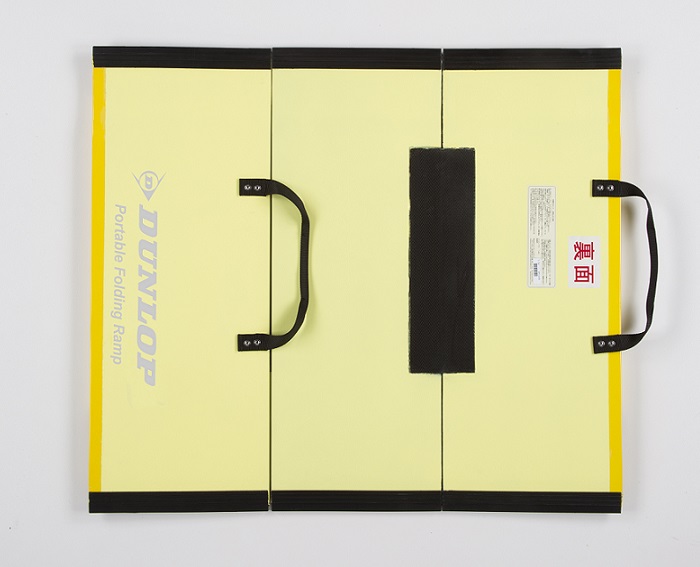

The three-fold design keeps the ramp compact and provides the widest running surface among all our series in 80cm. Best suitable for kerb or little steps in front of shop entrances.
|Product Name||DUNLOP GO01 Series Portable Folding Ramp | S-75G3-E|
|Fold||Three - fold|
|Width||when in use : 82 cm|
|effective width : 80 cm|
|when folded : 29 cm|
|Thickness when folded||5.5 cm|
|Weight||Approx. 3.5 kg|
|Side wall||height : 1.6 cm|
|Maximum load||300 kg|
|Material||Glass Fiber Reinforced Plastic (GFRP)|
|Rise(1:12)||5 cm or below|
DUNLOP's first three-fold type portable folding ramps are light and compact in size, strong enough to withstand a maximum of 300kg of load capacity. A well-designed carrying bag that keeps the ramp accessible and allows you to carry the ramp along wherever you travel. This travel-friendly series helps eliminate any potential barriers you might face. It is convenient to use and store. Besides a modest length, long type (up to 205cm), folding ramps in two-fold structures are also available to facilitate different needs.
DUNLOP GO01 is versatile for use in a variety of places such as shops, public facilities or homes. It is easy to use! Simply place it over the necessary barrier and then unfold. Use it after making sure it is placed properly. Reverse the action to remove it after use.
Compliant with the portable wheelchair ramp durability standard of the Japan Industrial Standard, JIS T9207 proves our products can be used up to 11,000 times. 5-year durability period under the assumption of 3 round trips of use per day.
Widest effective width of 82cm in three-fold type and 78.5cm in two-fold type compared to the other three series, providing you with enough space for your electric wheelchair or scooter. DUNLOP GO01 is suitable for use in a wide variety of scenarios such as shops, travel spots and other venues.
We have large variety of DUNLOP products to satisfy your needs.
DUNLOP GO01 Series Portable Folding Ramp | S-75G3-E
Length : 72cm
Weight : 3.5kg
DUNLOP GO01 Series Portable Folding Ramp | S-50G3-E
Length : 47cm
Weight : 2.5kg
DUNLOP GO01 Series Portable Folding Ramp | S-165G2-E
Length : 165cm
Weight : 8kg
DUNLOP GO01 Series Portable Folding Ramp | S-205G2-E
Length : 205cm
Weight : 10kg
DUNLOP GO01 Series Portable Folding Ramp | S-85G2-E
Length : 85cm
Weight : 4kg
DUNLOP GO01 Series Portable Folding Ramp | S-70G2-E
Length : 70cm
Weight : 3.5kg
DUNLOP GO01 Series Portable Folding Ramp | S-125G2-E
Length : 125cm
Weight : 6kg
