Compact and versatile. Two-fold design. Convenient to use.
|Product Name||DUNLOP LS01 Series Portable Folding Ramp | R-85SL-E|
|Width||when in use : 74.5 cm|
|effective width : 72 cm|
|when folded : 38 cm|
|Thickness when folded||8.5 cm|
|Weight||Approx. 4 kg|
|Side wall||height : 2.5 cm|
|width : 1.0 cm|
|Maximum load||300 kg|
|Material||Glass Fiber Reinforced Plastic (GFRP)|
|Rise(1:12)||6.5cm / 6 cm or below|
The best seller of portable wheelchair ramps in the Asia region and European countries among all series. DUNLOP LS01 is the first portable folding ramp to be accredited to Japan Industrial Standard (JIS), a confirmation of its high level of quality. Moreover, DUNLOP LS01 has been rated as a light and easy-to-use nursing care product under real users’ conditions and use by the Association for Technical Aids in Japan, over all other products accredited to JIS Certification. Except R-85SL (length 85cm) which is made by GFRP (Glass Fiber Reinforced Plastic), other 5 sizes are produced with inner urethane foam and high content of CFRP (Carbon Fiber Reinforced Plastic), a material commonly used in products such as golf clubs, tennis rackets and aviation components, which greatly reduces weight.
The maximum load of 300kg is capable of accommodating electric wheelchairs and caregivers. It has passed the JIS requirement on durability without deformation such as cracks or breakage that can occur under strict test conditions. A total of 11,000 repeated uses. This equates to a 5-year durability period under the assumption of 3 round trips of use per day.
LS01 can be easily carried by the elderly and others with less physical strength. Compared to ramps made by other material like aluminium, lightweight is definitely one of the advantages of LS01. For example, only approximately 11kg for the 245cm ramp whereas other brands could be double that.

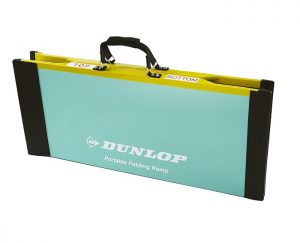

Simple to use
The two-fold structure makes it easy to install and remove. After placing the ramp in your desired location, unfold and hang on the rise. Pay attention to the correct placement so that the red line shown on the upper end matches the edge of the rise. This will ensure enough depth is secured. Fold and store after use.
We have large variety of DUNLOP products to satisfy your needs.
DUNLOP LS01 Series Portable Folding Ramp | R-285SL-E
Length : 285cm
Weight : 13kg
DUNLOP LS01 Series Portable Folding Ramp | R-85SL-E
Length : 85cm
Weight : 4kg
DUNLOP LS01 Series Portable Folding Ramp | R-245SL-E
Length : 245cm
Weight : 11kg
DUNLOP LS01 Series Portable Folding Ramp | R-205SL-E
Length : 205cm
Weight : 9kg
DUNLOP LS01 Series Portable Folding Ramp | R-165SL-E
Length : 165cm
Weight : 7kg
DUNLOP LS01 Series Portable Folding Ramp | R-125SL-E
Length : 125cm
Weight : 5kg
