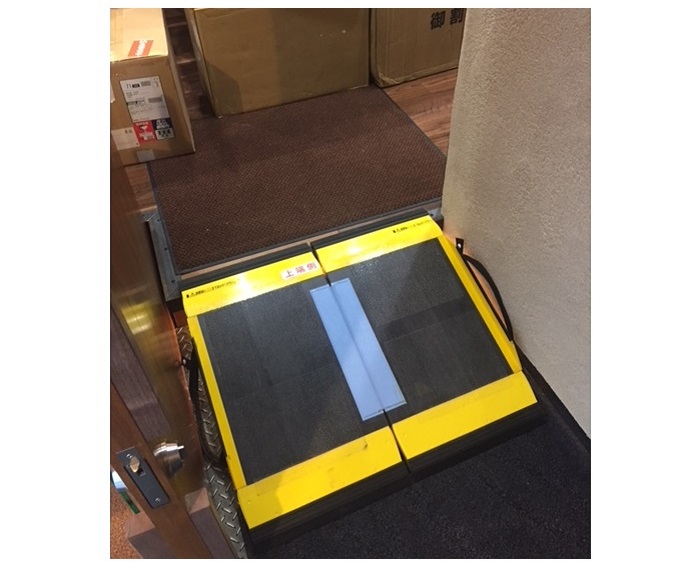

Compact in both width and length. Suitable to use in smaller place such as the entrance of the shop along the street.

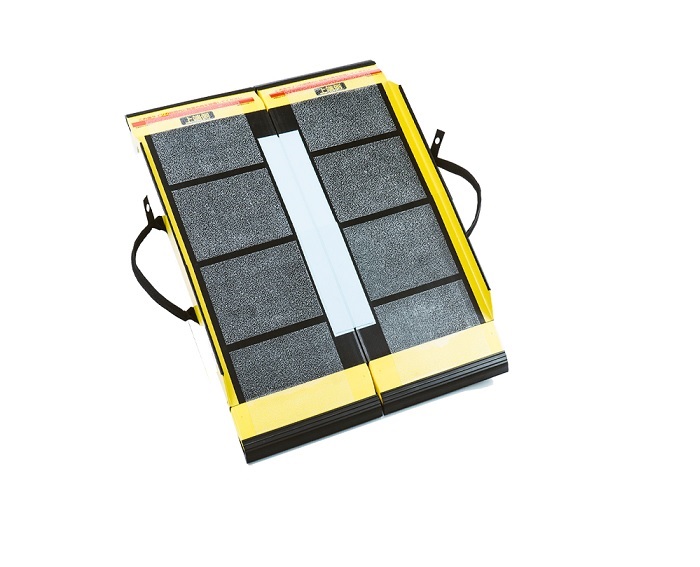

|Product Name||DUNLOP AR01 Series Portable Folding Ramp | R-65A-E|
|Width||when in use : 70.4 cm|
|effective width : 69.8 cm|
|when folded : 35.2 cm|
|Thickness when folded||11 cm|
|Weight||Approx. 3.5 kg|
|Side wall||height : 3.0 cm|
|width : 0.3 cm|
|Maximum load||300 kg|
|Material||Carbon Fiber Reinforced Plastic (CFRP)|
|Rise(1:12)||5cm or below|
The Lightest in the World* *When comparing seven sizes of DUNLOP AR01 (100-285cm) to other company ramps of similar sizes for sale in Japan. (In-house survey, August 2017) DUNLOP AR01 is exclusively designed and produced in Japan which is apparent in the distinctive characteristics of Japan products, which are great quality, thoughtful design and sophisticated appearance. DUNLOP AR01 uses carbon fibre composite with a unique pattern that was jointly developed with Toray, a well-known leading manufacturer of carbon fibre composite materials, to upgrade the strength. The hollow structure was developed to accomplish a lightweight but highly robust product. DUNLOP AR01 is notably suitable for narrow spaces or home care. Enhanced versatility, lighter, safer and extra-long length covers all of your needs. DUNLOP AR01 is accredited to JIS (Japan Industry Standard), a confirmation of its safety, quality and reliability.
Lightest portable folding ramp in the industry
Using high-quality, special carbon fibers, similar to those used in race cars and the aviation industry, we showcase our innovative technology in designing a light-weight and highly robust hollow structure.
A 3 cm edge reduces the risk of veering off the ramp and protective rubber reduces the risk of getting fingers caught when folding the ramp. Additionally, high traction anti-slip stickers are interchangeable to always protect you from slipping.
All sizes are under 71cm in width so portable ramps can be used in more compact spaces.
We have large variety of DUNLOP products to satisfy your needs.
DUNLOP AR01 Series Portable Folding Ramp | R-150A-E
Length : 150cm
Weight : 6kg
DUNLOP AR01 Series Portable Folding Ramp | R-65A-E
Length : 65cm
Weight : 3.5kg
DUNLOP AR01 Series Portable Folding Ramp | R-285A-E
Length : 285cm
Weight : 11kg
DUNLOP AR01 Series Portable Folding Ramp | R-245A-E
Length : 245cm
Weight : 10kg
DUNLOP AR01 Series Portable Folding Ramp | R-175A-E
Length : 175cm
Weight : 7kg
DUNLOP AR01 Series Portable Folding Ramp | R-200A-E
Length : 200cm
Weight : 8kg
DUNLOP AR01 Series Portable Folding Ramp | R-120A-E
Length : 120cm
Weight : 5kg
DUNLOP AR01 Series Portable Folding Ramp | R-100A-E
Length : 100cm
Weight : 4.5kg
